Product Introduction

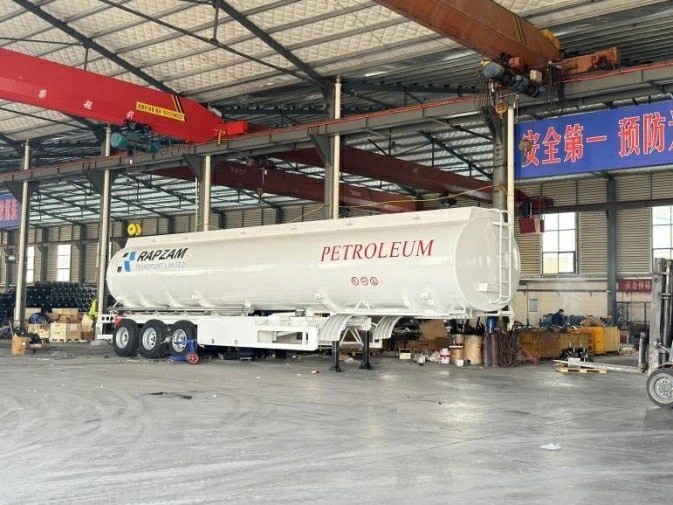

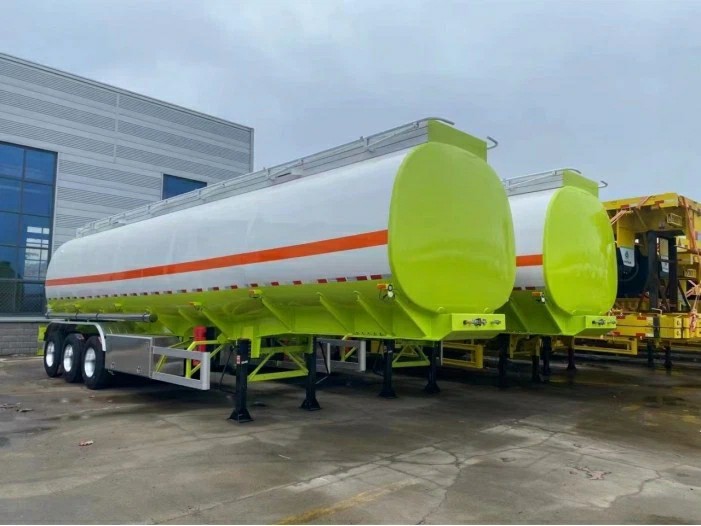

The oil transportation insulated tank semi-trailer is a specialized vehicle designed for the safe and efficient transport of petroleum, diesel, and other liquid fuels. Equipped with advanced insulation technology and a robust structural design, it maintains stable temperature of the transported medium, prevents leakage, and adapts to various road conditions. This semi-trailer is an essential equipment for energy logistics, widely used in oil fields, refineries, and fuel supply chains.
Product Features & Material Description
Insulation Performance: Adopts multi-layer insulation structure (inner layer: Q345B high-strength steel, insulation layer: polyurethane foam with density ≥ 40kg/m³, outer layer: 304 stainless steel). The thermal conductivity is ≤ 0.024W/(m·K), ensuring the medium temperature change ≤ ±3℃ within 24 hours.
Safety Configuration: Equipped with anti-overflow sensor, emergency shut-off valve, and pressure relief device. The tank body undergoes hydraulic test (pressure ≥ 0.4MPa) and leak detection to meet international safety standards.
Structural Design: Integral welding frame with high torsional rigidity; anti-roll bars and reinforced undercarriage enhance stability during transportation. The tank volume ranges from 30m³ to 60m³, customizable according to user needs.
Corrosion Resistance: Inner tank surface is treated with anti-corrosion coating (epoxy resin) to resist chemical erosion from fuels, extending service life.
Technical Parameters
|
Parameter Item |
Specification |
|
Tank Volume |
30-60m³ (customizable) |
|
Tank Material |
Inner: Q345B steel; Outer: 304 stainless steel |
|
Insulation Layer Thickness |
80-120mm (polyurethane foam) |
|
Working Temperature |
-20℃ ~ +80℃ |
|
Gross Weight |
≤ 49 tons |
|
Wheelbase |
13000-18000mm |
|
Loading Capacity |
30-50 tons |
|
Pressure Rating |
0.1-0.4MPa |
Product Advantages
Superior Insulation: Effectively maintains medium temperature, reducing energy loss and ensuring product quality during long-distance transport.
High Safety: Multiple safety devices and strict quality testing minimize leakage and explosion risks.
Durable & Reliable: High-quality materials and solid structure withstand harsh working environments, reducing maintenance frequency and costs.
Customizable: Flexible volume, size, and configuration options to meet diverse transport requirements.
Efficient Logistics: Optimized design improves loading capacity and fuel efficiency, enhancing transport efficiency and reducing operational costs.
