Introduction
The gooseneck lifting and folding type low-bed semi-trailer, in addition to its core function of adjusting the platform via gooseneck lifting and folding, is also equipped with internationally compliant axles and anti-corrosion components. It has passed certifications such as ECE, adapting to complex overseas road conditions and multi-market regulations, and meeting the cross-border transportation needs of large cargo such as engineering machinery.
Details

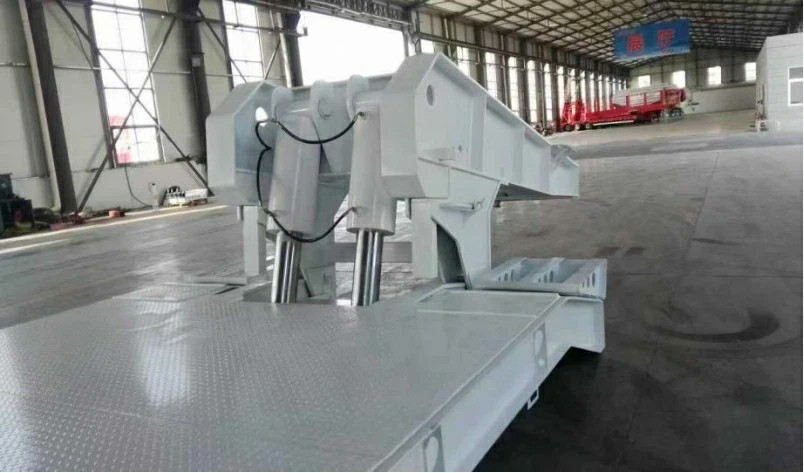

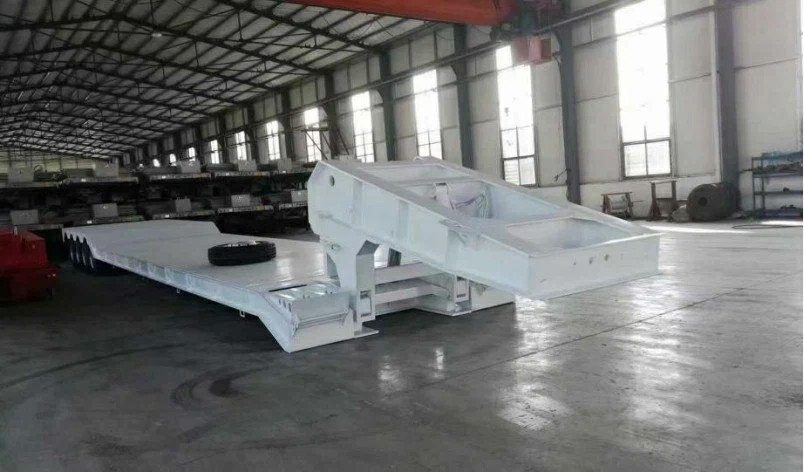

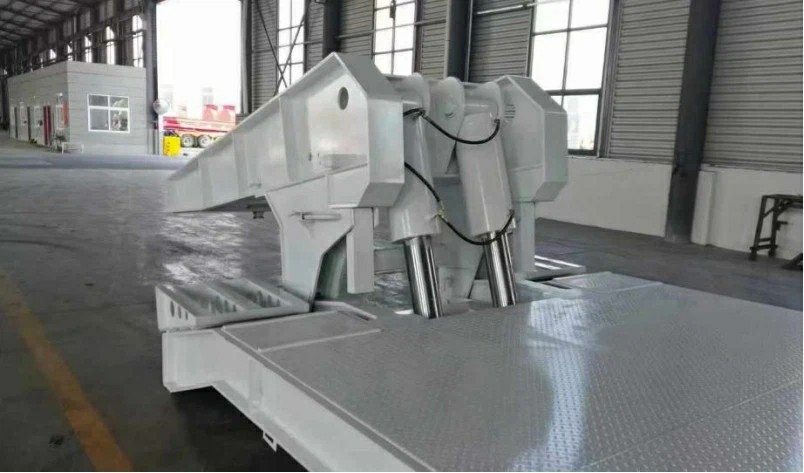

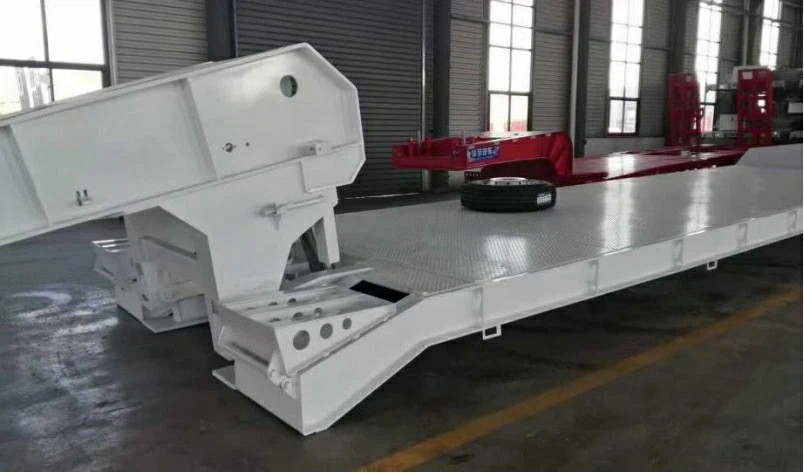

The gooseneck features dual functions of hydraulic lifting and folding, enabling quick adjustment of the platform height to adapt to loading and unloading of ultra-high and large cargo. It offers flexible options of 3-4 axles and has passed ECE and GCC certifications, meeting the regulations of multiple countries in Europe, America, Africa, etc. The frame is made of Q345B/700 high-strength steel with automatic submerged arc welding; the 4-axle model can carry up to 100 tons. Equipped with WABCO braking system + ABS/ESC, it ensures safety even on complex road conditions. Shot blasting derusting + optional anti-corrosion coating resists humidity, heat, salt, and alkali. Maintenance-free axles + 24-hour overseas after-sales service reduce operating costs.
Parameters
|
Category |
Specific Parameters |
Remarks |
|
Overall Dimensions (mm) |
13000-16000×3000×1580-1760 |
Length and width can be customized according to different cargo. |
|
Platform Dimensions (mm) |
9000-12000×2800-3000×700-1350 |
Low platform design, adapting to ultra-high and large cargo. |
|
Self-weight |
15-30 tons |
- |
|
Total Mass |
69-200 tons |
- |
|
Axles (Optional) |
3-axle, 4-axle, 5-axle, 6-axle |
3-axle load: 30-60 tons; multi-axle can be upgraded to 200 tons. |
|
Gooseneck |
Hydraulic lifting and folding type, detachable |
Can adjust platform height, facilitating front-end loading/unloading of engineering machinery. |
|
Ramp |
Mechanical spring type / hydraulic automatic type |
Made of high-strength steel; anti-slip design, strong load-bearing capacity without deformation. |
|
Main Beam |
Q345B/700 high-strength steel, 450-520mm high; upper/lower plate thickness: 14-26mm; middle plate thickness: 8-14mm |
Adopting automatic submerged arc welding process to enhance bearing strength. |
|
Side Beam |
16-25mm channel steel (Q235 steel) |
Enhances overall rigidity of the frame. |
|
Platform Floor |
4-7mm checkered steel plate |
Anti-slip and wear-resistant, suitable for parking heavy equipment. |
|
Side Beam |
16# and 18# channels |
- |
Product Applications
It serves overseas infrastructure, mining, and logistics sectors, capable of transporting large engineering cargo such as excavators and wind power equipment. It is compatible with 40-45ft containers and can also handle cold chain transportation of agricultural products in Southeast Asia and mineral transshipment in Africa, making it a core equipment for multimodal transport.
