Product Parameters Table
|
Parameter Item |
Details |
|
Length |
13m |
|
Number of Axles |
3-axle |
|
Frame Material |
Q345B high-strength steel |
|
Load Capacity |
Over 50 tons |
|
Customizable Options |
Stake height, left-hand/right-hand steering, ABS, etc. |
Product Introduction

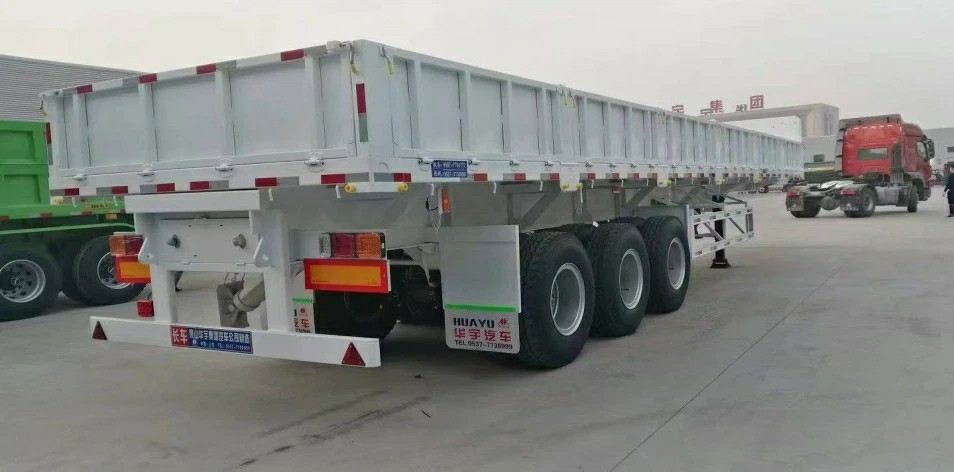

The 13m 3-axle stake semi-trailer is the preferred choice for export heavy-duty transportation! The Q345B high-strength steel frame ensures strong load-bearing capacity, and its compliant dimensions are suitable for global road conditions. It can be customized with adjustable stake height and left-hand/right-hand steering, efficiently facilitating overseas cargo transportation!
Core Advantages
Strong load-bearing & stable transportation: Equipped with a 3-axle configuration and Q345B high-strength steel frame, it has a load capacity of over 50 tons, suitable for heavy-duty scenarios such as coal and building materials transportation, ensuring stable driving and resistance to Bumpy.
Global compliance & adaptability: With a compliant 13m dimension, it supports customization of left-hand/right-hand steering, ABS, etc., meeting regulations in Europe, America, Africa, Southeast Asia and other regions, and easily passing local certifications.
Cost-effective & durable: The stake height is adjustable, core components are easy to maintain, and long-term operating costs are low, helping overseas customers reduce costs and improve efficiency.
|
Category |
Core Specifications |
|
Basic Dimensions |
Total length 13m, wheelbase 10-10.5m, stake height 40-80cm |
|
Axle Configuration |
3-axle, rated axle load 11.5T per axle |
|
Frame Structure |
Material: Q345B high-strength steel; longitudinal beam height 300-380mm |
|
Braking & Safety |
Standard: ABS; optional: EBS; drum/disc brakes |
|
Custom Adaptation |
Supports customization of left-hand/right-hand steering, LED lights, and tire specifications |
