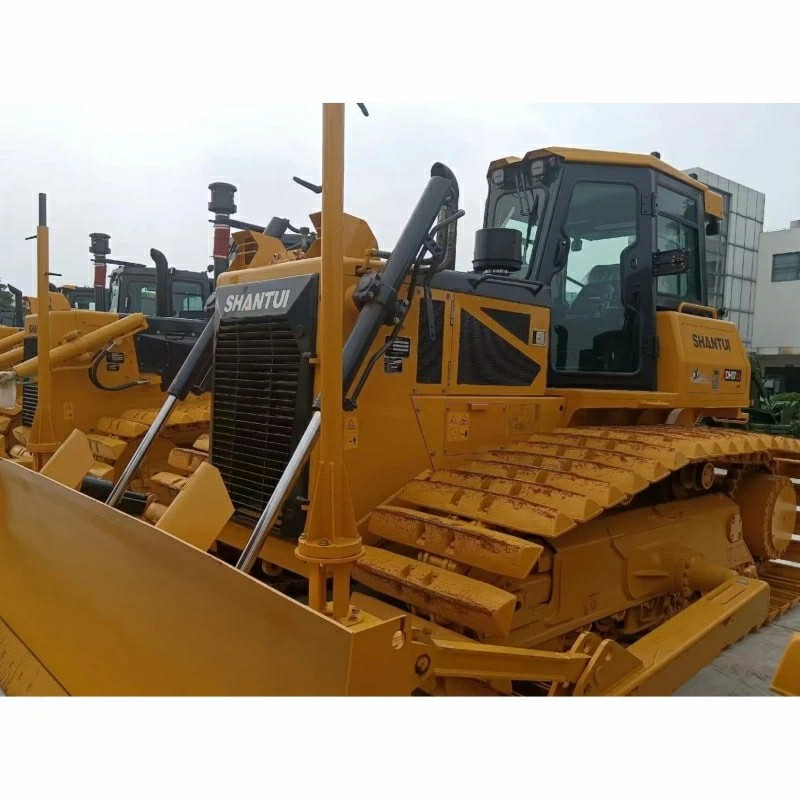

Used Shantui SD17 Crawler Hydraulic Bulldozer
Ideal for overseas infrastructure and mining projects! Equipped with a 140kW Weichai engine that meets Euro III standards, it features three power modes for fuel efficiency and high performance. The single-lever electronic control ensures easy operation, while the sealed cab offers comfort and safety. Its self-developed transmission system is durable, and multiple blade configurations adapt to various working conditions. The machine has passed strict inspections, with complete documents for smooth customs clearance, making it a cost-effective choice!
Features and Technology
1. Intelligent and Efficient Power
It is equipped with Weichai WP9H/WP10 series electronic control engines, with a rated power of 140kW (170 hp) and compliance with National IV / Euro IIIa emission standards. The large-capacity fuel tank supports continuous 16-hour operation.
2. Comfortable and Convenient Operation
Adopting single-lever electronic control, paired with pilot-controlled working devices, it enables precise and labor-saving operation.
3. Strong Adaptability to Working Conditions
The long ground-contact crawler design ensures passability in complex terrains such as mines and wetlands. It can be matched with blades of different capacities to adapt to diverse operations like pushing, hauling, and excavation. Its modified versions cover niche scenarios including coal handling and environmental sanitation.
4. Mature Inheritance of Core Technology
Upgraded and developed based on the classic SD16 model, it inherits 40 years of manufacturing experience and Komatsu's technical heritage. The core components of the transmission system are compatible with the SD16, and its stability has been proven by long-term market verification. Key components such as torque converters, gearboxes, and chassis are fully self-manufactured by Shantui. Among them, the "four wheels and one track" of the crawler chassis are sold overseas, with a service life far exceeding that of competitors.
Technical Specifications
1. Overall Machine Parameters
Overall Operating Weight: 16,800-19,790kg (varies by version; approximately 17,000kg for the standard version)
Overall Dimensions (L×W×H): 5,450×3,452×3,200mm (standard version); 5,500×4,230×3,240mm (super wetland version)
Minimum Ground Clearance: 400mm
Ground Pressure: 27-67kPa (0.067MPa for standard version; as low as 27kPa for super wetland version)
Climbing Capacity: 30°
2. Power System
Engine Model: Weichai WP9H/WP10 series (e.g., WP9H, WP10G190E354, etc.)
Rated Power/Speed: 140kW/1,900rpm (170 hp)
Emission Standard: National IV / Euro IIIa
Power Modes: Light load (120kW), medium load (131kW), heavy load (140kW)
Fuel Tank Capacity: 338-345L
3. Transmission and Travel System
Transmission Type: Hydraulic transmission; Shantui self-manufactured torque converter and gearbox
Travel Speed: 3 forward gears (0-3.5/0-6.2/0-10.6km/h); 3 reverse gears (0-4.5/0-8.0/0-13.1km/h)
Crawler Parameters: Center distance 1,880-2,430mm; ground contact length 2,635-2,935mm; crawler plate width 510-1,100mm (multiple specifications optional)
4. Working Device
Blade Type: Straight tilt blade (semi-U blade, coal pushing blade, sanitation blade, etc. optional)
Blade Capacity: 3.2-4.5m³
Blade Dimensions (W×H): 3,388×1,149mm (standard version)
Maximum Cutting Depth: 485-540mm
Maximum Lifting Height: 1,095mm
Ripper (Optional): Maximum lowering depth 536mm; maximum lifting height 592mm
5. Other Configurations
Operation Method: Single-lever electronic control (integrating speed change, reversing, and steering); pilot control for working devices
Cab: Positive pressure sealed design, with roll-over/falling object protection; 8-inch LCD screen + reverse image
Hydraulic System: Working hydraulic oil tank capacity 70-75L; high-pressure system with overload protection
Services
Pre-sales: Strictly select vehicle sources, conduct professional inspections, and provide authentic reports and complete documents.
In-sales: Assist with ownership transfer and coordinate logistics and transportation.
After-sales: Provide quality assurance for core components, as well as spare parts supply and technical consultation support.
