Introduction

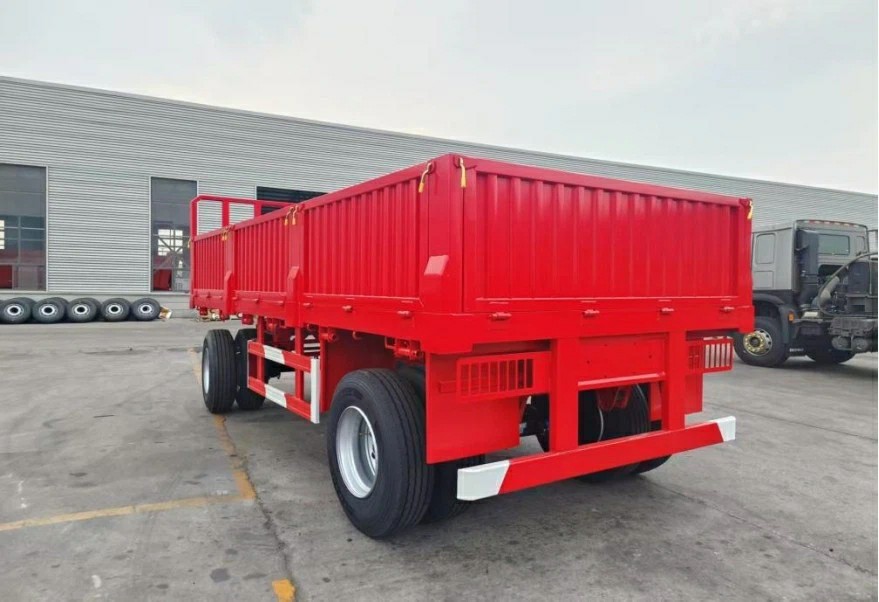

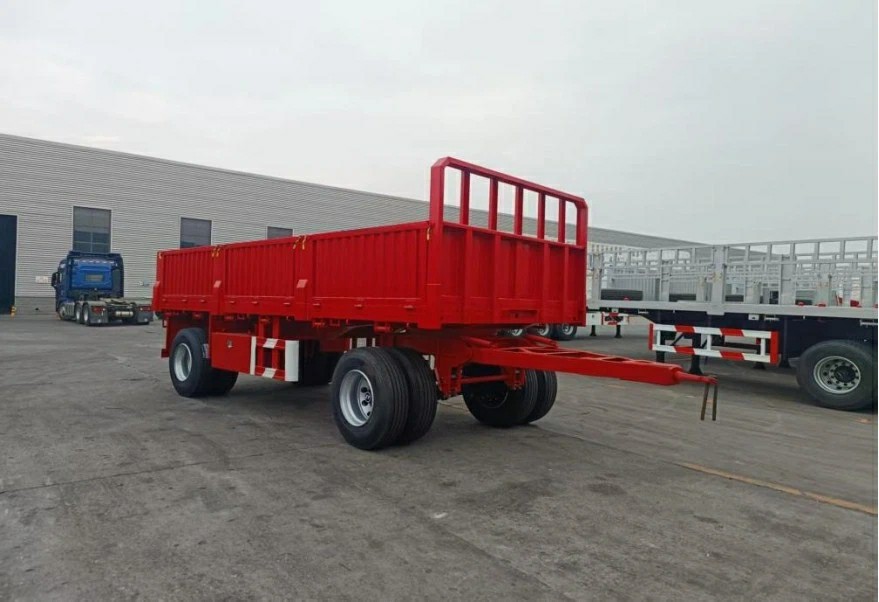

The flatbed multi-purpose full trailer features a flatbed frame made of Q345B high-strength steel, with no fixed compartment, making it suitable for various goods such as construction machinery, building materials, and containers.
Core Advantages
Highly Versatile: Without a fixed cargo compartment, it can transport bulky or irregular goods like steel, construction machinery, and containers, with few scenario restrictions.
High Loading and Unloading Efficiency: The flat platform facilitates operations with cranes and forklifts, significantly shortening loading/unloading time and reducing transfer costs.
Reliable Load-bearing Capacity: The frame is mostly of a reinforced structure with various load specifications, capable of stably carrying heavy goods to meet high-intensity transportation needs.
Parameters
|
Category |
Specific Parameters |
|
Overall Dimensions |
Length: 10000-16000mm; Width: 2480-3000mm; Height: 1300-1500mm (excluding additional accessories, only the height of the flatbed frame). |
|
Flatbed Platform Dimensions |
Length: 10000-16000mm; Width: 2480-3000mm; Platform height from the ground: 1200-1400mm. |
|
Wheelbase |
2-axle model: 6000-8000mm; 3-axle model: 6800+1310+1310mm, 7500+1310+1310mm. |
|
Curb Weight |
2-axle model: 5000-7000kg; 3-axle model: 7000-10000kg. |
|
Rated Load Capacity |
2-axle model: 30000-40000kg; 3-axle model: 50000-60000kg; Some heavy-duty custom models can reach 80000kg (requires matching with a dedicated tractor). |
|
Total Mass |
35000-70000kg |
|
Frame Material |
Main longitudinal beams: Q345B high-strength steel, thickness 14-20mm; Crossbeams: 16#-20# channel steel or 10mm thick steel plates, spacing 500-800mm (dense to 300-400mm in heavy-load areas). |
|
Flatbed Platform |
8-12mm anti-slip checkered steel plate (anti-slip coefficient ≥0.8), or 6mm flat plate + anti-slip strips; 100-150mm high guardrails on platform edges to prevent goods from slipping. |
|
Axles |
2-3 axle configuration; Single axle load: 13-20 tons. |
|
Suspension System |
Mechanical leaf spring suspension (10-16 pieces of 90×13mm springs); Multi-leaf springs (16-20 pieces) optional for heavy-load models. |
|
Tires |
Specifications: 11.00R20, 12R22.5, 385/65R22.5; Quantity: 8-12. |
|
Braking System |
Dual-circuit pneumatic braking, ABS anti-lock braking system; EBS electronic braking system optional for heavy-load models. |
|
Electrical System |
Voltage: 24V; 7-pin ISO standard socket; LED turn signals, brake lights, side lights (brightness ≥2000cd). |
Applications
With the features of "no fixed compartment + flexible additional accessories", the flatbed multi-purpose trailer is widely used in diverse scenarios such as infrastructure, logistics, and industry:
In the infrastructure engineering field: Equipped with a 10-15 ton hydraulic ladder, it can carry construction machinery like excavators, loaders, and road rollers, suitable for equipment transfer in road construction, building projects, etc. When paired with detachable sideboards, it can transport building materials such as steel bars, cement pipes, and prefabricated panels, with the anti-slip platform preventing goods from slipping due to bumps.
In the logistics transportation field: Equipped with 12 sets of container twist locks, it can be compatible with 20/40-foot standard containers, connecting multimodal transport in ports and logistics parks. In its bare platform state, it can transport regular goods like home appliances and furniture.
In the industrial production field: It can carry heavy industrial equipment such as machine tools and motors; the air suspension configuration can reduce vibration damage during the transportation of precision instruments. In some scenarios, it can also be used for agricultural product transportation, such as loading agricultural machinery like harvesters and tractors, or transporting bulk goods like grain and vegetables. It is an all-round transport equipment that balances "heavy load + flexibility".
