Container Frame 45-foot Semi-trailer

Send Inquiry
Container Frame 45-foot Semi-trailer
Details
Price: $9718
Category
Semi-trailer With A Frame Structure
Description

Introduction

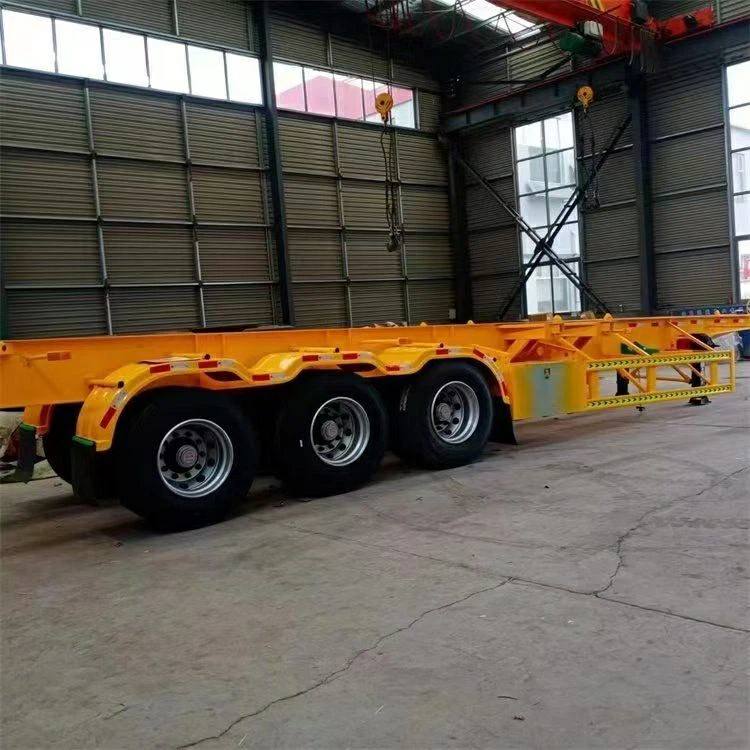

The 45-foot container chassis semi-trailer is a high-capacity transfer equipment for ports and multimodal transportation scenarios.
Widely used in global port transfer, multimodal transportation, and cross-border logistics, it supports customization such as right-hand drive and low-temperature protection. It is a core transport tool for improving cargo turnover efficiency.



Core Advantages



Strong Loading Adaptability: Its length precisely matches 45-foot standard containers, while being compatible with multiple specifications such as 20-foot and 40-foot containers. It quickly secures goods with multiple sets of twist locks, adapting to large-volume transportation needs such as bulky light goods.
Outstanding Operational Efficiency: The open chassis design, combined with standardized locks, enables quick loading and unloading via cranes and reach stackers.
Wide Scene Adaptability: The frame structure is sturdy and maneuverable, meeting the needs of short-distance transfer between ports and warehouses, adapting to long-distance trunk logistics, and integrating into multimodal transportation systems, supporting overseas market operations.



Product Parameters



Category

Specific Parameters

Overall Dimensions

Length: generally 13920-14200mm; Width: approximately 2480-2550mm; Height: 1430-1680mm.

Weight

Curb weight: usually 3.8-7.2 tons; Rated load capacity: up to 34-60 tons.

Frame Structure

Longitudinal beam height: commonly 350-550mm; Upper flange thickness: generally 8-18mm; Lower flange thickness: 10-20mm; Web thickness: 5-10mm.

Braking System

Dual-circuit pneumatic braking system.

Suspension System

Leaf spring suspension and air suspension.

Axles

2-axle, 3-axle, 4-axle.

Wheelbase

1310mm.

Tires

8-12 units.

Toolbox

1-2 units.

Support Legs

28T linked support legs.

Certifications

ISO9001, CCC.
