Introduction

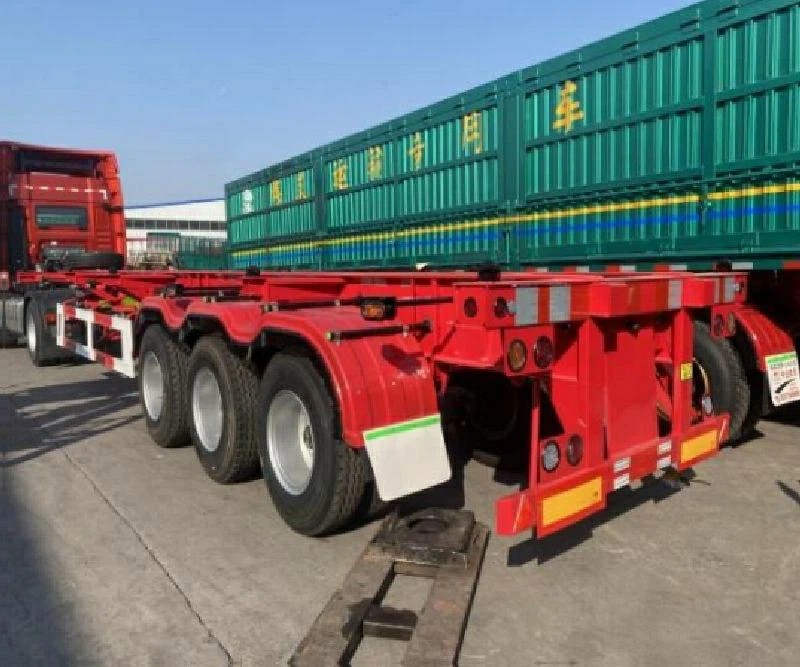

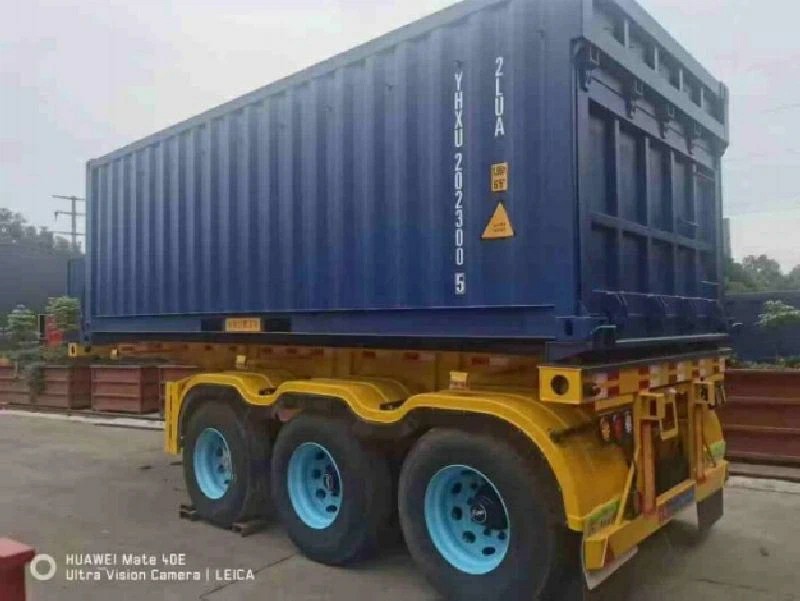

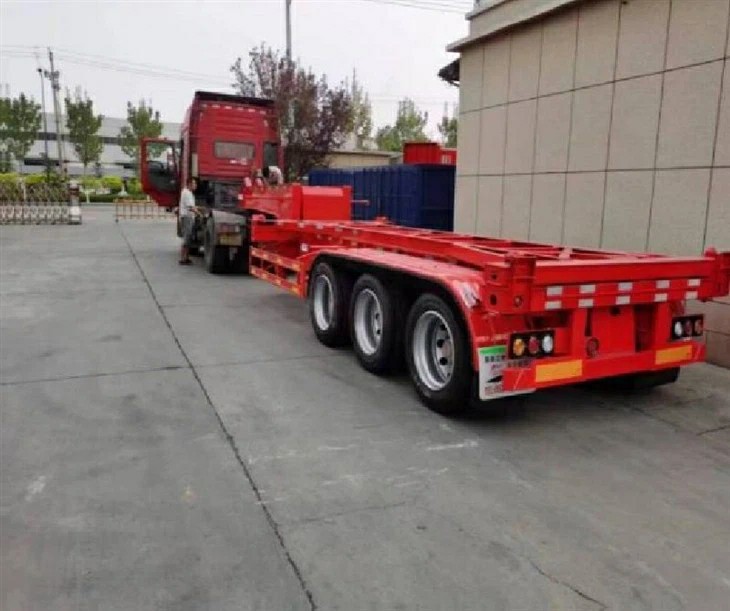

The 20-foot container chassis semi-trailer is made of high-strength steel. It is a specialized equipment designed specifically for transporting small-sized containers, used for efficient transfer in scenarios such as ports and logistics.
Core Advantages
Precise Adaptability: Its dimensions fully match 20-foot standard containers, with quick fixation via multiple sets of twist locks. It is also compatible with tank containers of the same specification, offering strong adaptability.
Flexible Operation: With a short body and small turning radius, it is suitable for short-distance transfer in ports and urban distribution. It can be quickly loaded and unloaded with lifting equipment, featuring outstanding efficiency.
Product Parameters
|
Category |
Specific Parameters |
|
Overall Dimensions |
Approximately 7220mm×2480mm×1540mm |
|
Curb Weight |
3600kg |
|
Rated Load Capacity |
40000kg |
|
Frame Material |
Q345B high-strength steel |
|
Axles |
Optional BPW-12t or FUWA-13t axles |
|
Suspension System |
Optional BPW suspension with 12-leaf springs (German style), FUWA suspension with 8-leaf springs, or air suspension |
|
Tire Sizes |
Optional specifications: 11.00R20, 11R22.5, 12R22.5, 315/80R22.5, 385/65R22.5, etc. |
|
Braking System |
Dual-circuit braking system, equipped with Wabco RE-6 emergency relay valve, MBA T30/30 air chamber, and 46L air storage tank |
|
Electrical System |
24V voltage, 7-pin ISO standard socket, equipped with brake lights, turn signals, reverse lights, side lights, reflectors, and fog lights |
|
Others |
Jost brand kingpin and support legs; 4 twist locks; optional toolbox. |
