Product Parameters Table
|
Parameter Item |
Details |
|
Length |
40ft (45ft available on request) |
|
Number of Axles |
4 axles |
|
Container Locks |
12 pieces |
|
Safety Features |
Front fenders, 2 side posts |
Product Introduction

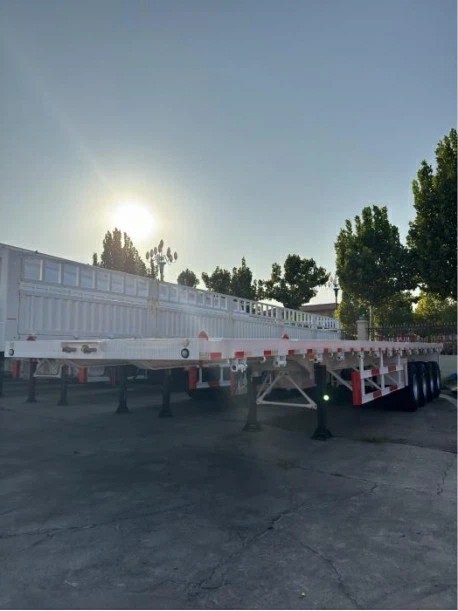

A flatbed semi-trailer is a semi-trailer transport vehicle with no fixed side rails, a horizontal loading platform, and no enclosing structure. It enables convenient loading and unloading, is compatible with equipment such as forklifts, and is often used to transport large or heavy goods like construction machinery and steel.
Product Details

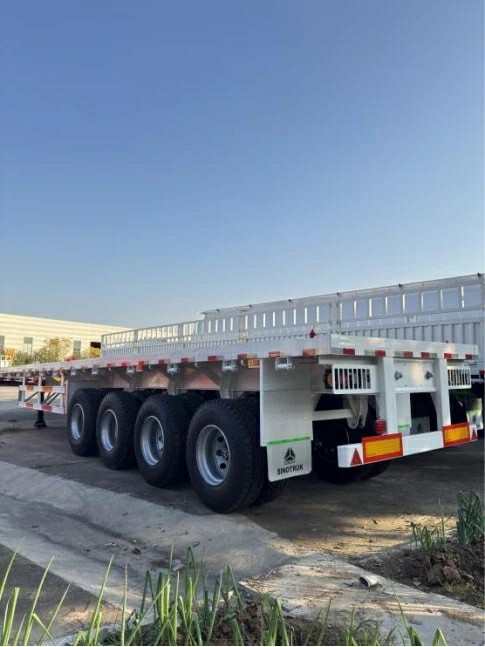

This flatbed semi-trailer is equipped with four axles and features a special design that evenly distributes weight across all wheels, ensuring stability and balance during transportation. Our 40ft flatbed semi-trailer comes with 12 container locks, which allow containers to be placed in the middle of the semi-trailer during transportation, preventing the vehicle from sagging and extending the service life of the semi-trailer. Additionally, we can manufacture 45ft flatbed semi-trailers according to your requirements.

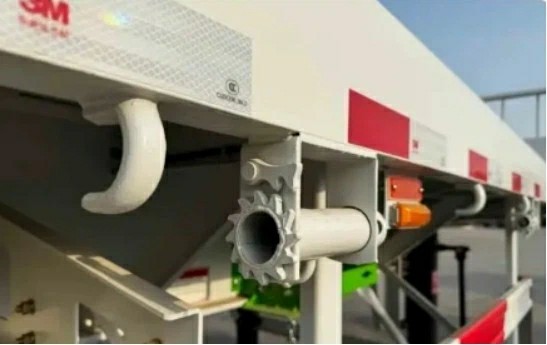

The flatbed is highly safe, fitted with front fenders and two side posts. Therefore, when the flatbed trailer is not transporting containers, it can carry other goods such as steel pipes and logs. This prevents steel pipes and logs from rolling off during transportation and causing accidents.
Product Parameters
|
Parameter Item |
Details |
|
Length (mm) |
12400, 12500 |
|
Width (mm) |
2500 |
|
Height (mm) |
1500, 1600, 2700, 2900, 3300, 3500 |
|
Rated Load Capacity |
30T, 40T, 50T, 70T, 80T |
|
Material |
Carbon steel, high-strength steel |
|
Number of Axles (Optional) |
3-axle, 4-axle |
|
Twist Locks |
12 units |
|
Main Beam |

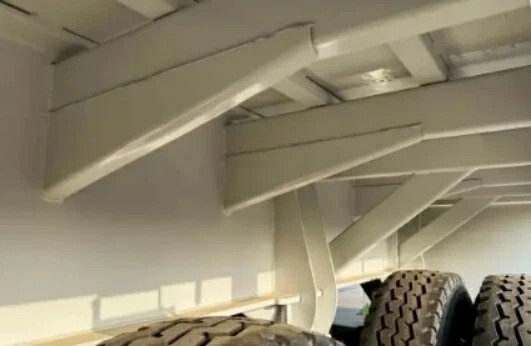

Heavy-duty and extra-durable I-beam design; high-strength steel Q345B selected, welded with automatic submerged arc welding process |
|
Frame Beam |
Top flange: 14mm, width 140mm; middle flange: 8mm; bottom flange: 16mm, width 140mm; main beam height: 500mm |
|
Frame Floor |
3mm thick patterned floor |
|
Side Beam |
16# channel |
|
Through Channel |
10# channel |
|
Edge Beam |
6# channel x6 |
|

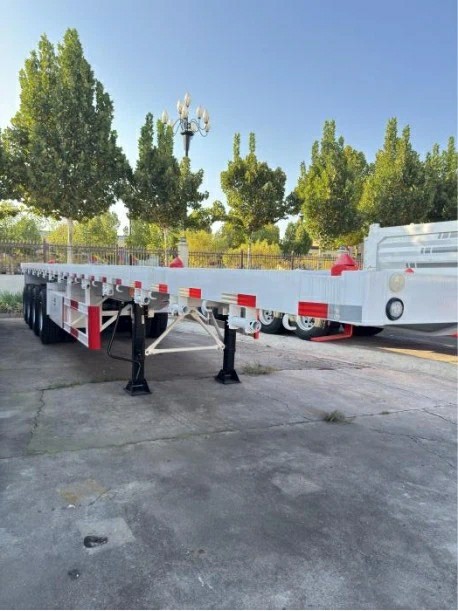

Landing Gear |
28-ton lifting capacity, dual-speed, Jost brand |
|
Kingpin |
2.00 or 3.5-inch bolt-fixed kingpin |
|
Suspension |
Mechanical suspension |
|
Leaf Spring |
90mm (W) * 16mm (T) * 10 layers |
Product Applications
Widely suitable for overseas markets such as Africa and Southeast Asia, it can transport 1×40ft or 2×20ft containers, as well as bulk goods and oversized cargo like steel, building materials, and construction machinery. It serves as a core equipment for medium-to-long-distance heavy-duty transportation in international trade logistics, construction, and mining industries.
